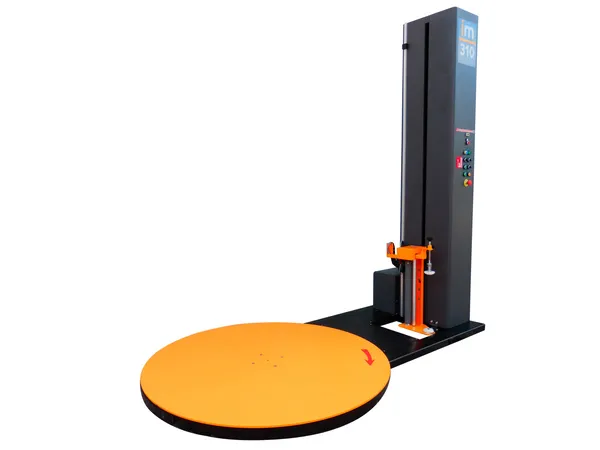

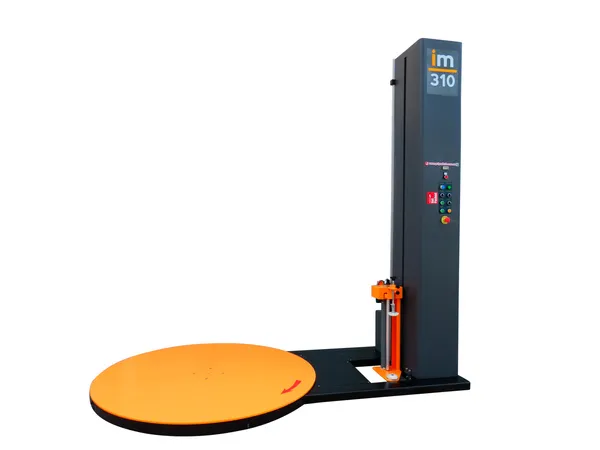

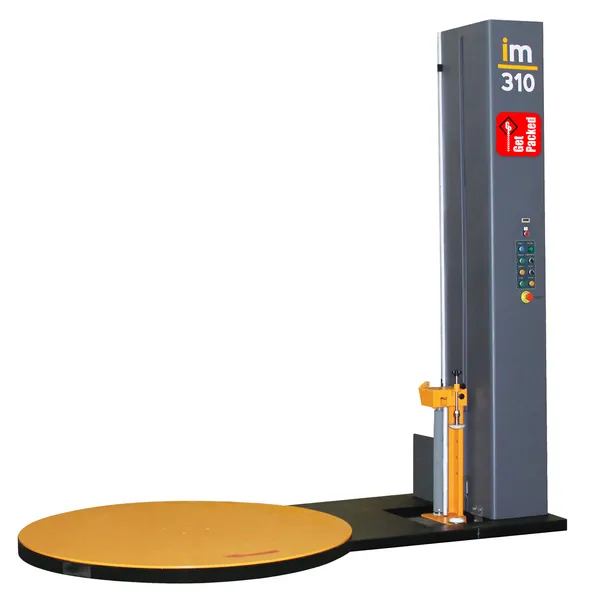

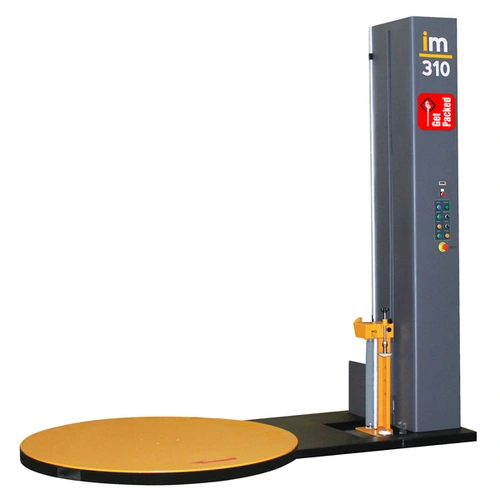

Pallet Wrapper iM310 Stretch Wrapping Machine

10-50 Pallets / day Entry Level Pallet Wrapping Machine

Pallet Wrapper iM310 Stretch Wrapping Machine

The iM310 semi automatic pallet wrapper is designed in Australia and replaces the very popular excel 310 stretch wrapping machine.  It is an entry level pallet wrapper for the wrapping of up to 40 pallets a day with a stylish and sturdy new column. It has been upgraded to include the relocation of the carriage motor and gearbox which is now at the base of the mast. It has a new slimline cabinet, the stretch head motor has been relocated to be above the stretch head which eliminates a pinchpoint. It now has a service reminder alarm and extra wrapping cycles for greater wrapping flexibility.
All the great features of the Excell 310 have been kept, but with a little more speed. For a full list of specifications and all brochures/manuals etc please go to the More Information Tab above.

Standard features include:

  • Best for wrapping 40+ pallets per day
  • Standard wrapping height of 2200mm
  • maximum turntable speed of 15rpm
  • Photo eye sensor detects product height automatically
  • Has a throughput of up to 30 loads per hour
  • 2000Kg turntable
  • Lower Cap-Ex
  • Soft Start
  • Home base TT position
  • Push Buttons
  • Suitable for wrap cores of either 50mm or 76mm
  • Selectable Wrap cycles – full wrap, light wrap and top sheet
  • Top and bottom wraps adjustable (1, 2 or 3)
  • 500mm Friction brake (variable tension/control)
  • Can use Pre-stretch films and achieve similar result as power head machines
  • Forklift Transportable
  • standard 12 month warranty supported by local service and support


  User Manual

  Specifications for Standard Machine with Extended Ramp Layout

Specifications for Standard Machine with Standard Ramp Layout

Be The First To Review This Product!

Help other Get Packed Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Code Product

Code: 1-IM310

Pallet Wrapper iM310 Stretch Wrapping Machine
Price on Application

One of our most popular machines, these heavy duty pallet wrappers can wrap loads of up to 2000kg, If your looking for a trouble free robust pallet wrapper you can't go past the 1-IM310 machine.
