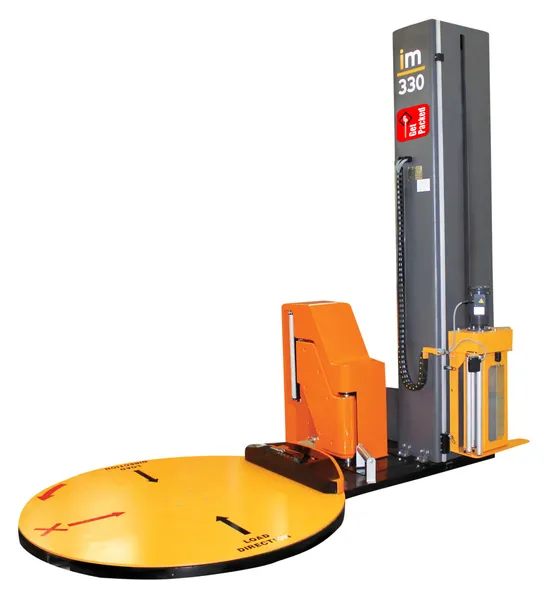

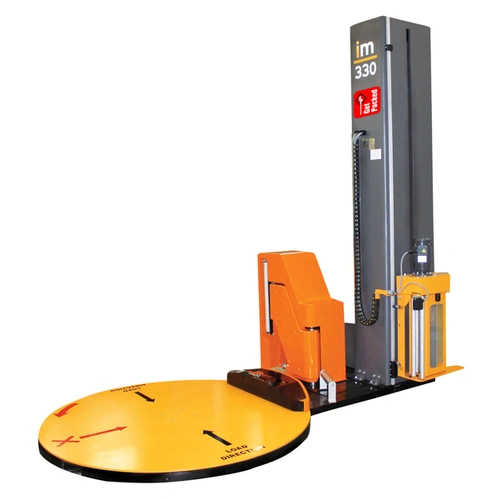

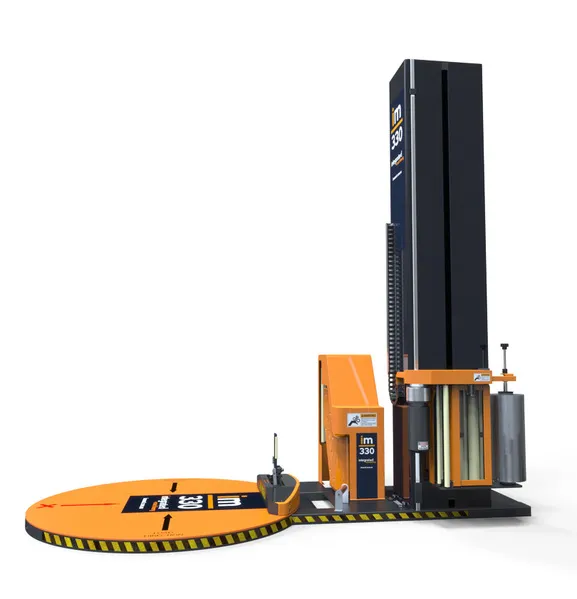

Pallet Wrapper iM330 Automatic Stretch Wrapping Machine

For wrapping 40-200+ Pallets per day

Pallet Wrapper IM330 Automatic Stretch Wrapping Machine

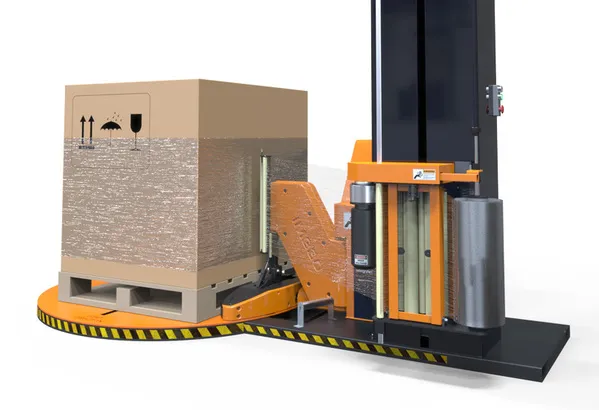

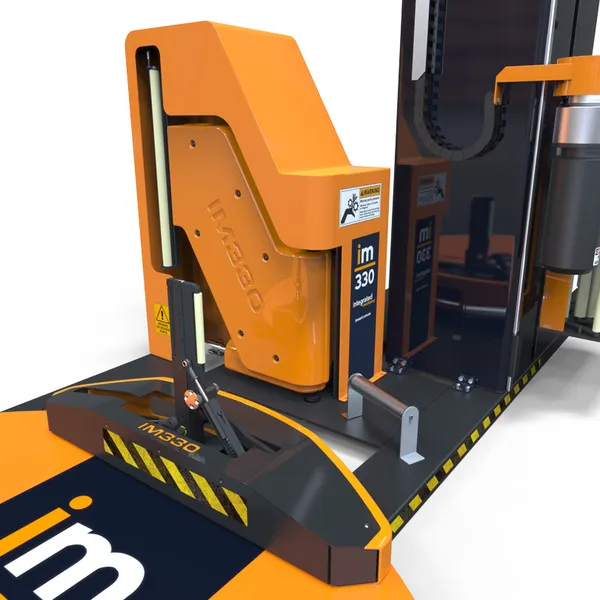

The IM330 Automatic Pallet Wrapping Machine is the newest release in IM pallet wrappers series that has been designed in Australia.  It features an easy-load powered pre-stretch film carriage, selectable wrapping styles and easy to use control panel and like the others it has a stylish sturdy new column including all the safety features and a standard wrapping height of 2200mm, with a maximum turntable speed of 15rpm.  This is an automatic machine in a semi-automatic format.  The operator wraps from the forklift by remote control or Lanyard.  The machine Attaches, Cuts & Heat seals the film, eliminating film tails.  All the time freeing up your operators.  The 200% power pre-stretch head allows less film to be used to wrap your pallet resulting in a lower cost per pallet wrapped.

Please go to the More Information Tab for further details and the brochure.

  Brochure on the IM330 Pallet Wrapper

Features include:

  • Best when your requirement is 40-200 pallets per day
  • Standard wrapping height of 2200mm
  • maximum turntable speed of 15rpm
  • variable carriage speeds
  • Soft Start
  • Home based TT position
  • Photo eye sensor detects product height automatically
  • Has a throughput of up to 30 loads per hour
  • 2000Kg turntable
  • 80mm turntable height
  • AC variable speed drives
  • PLC controlled
  • Touch panel with screen
  • Suitable for wrap cores of either 50mm or 76mm
  • Selectable Wrap cycles – full wrap, light wrap and top sheet
  • Top and bottom wraps adjustable (2, 3 or 4)
  • 500mm Friction brake (variable tension/control)
  • Forklift Transportable fron and rear access 754mm outside width
  • 25-30 pallets per hour
  • standard 12 month warranty supported by local service and support

Be The First To Review This Product!

Help other Get Packed Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Code Product

Code: 1-IM330

Pallet Wrapper iM330 Automatic Stretch Wrapping Machine
Price on Application
