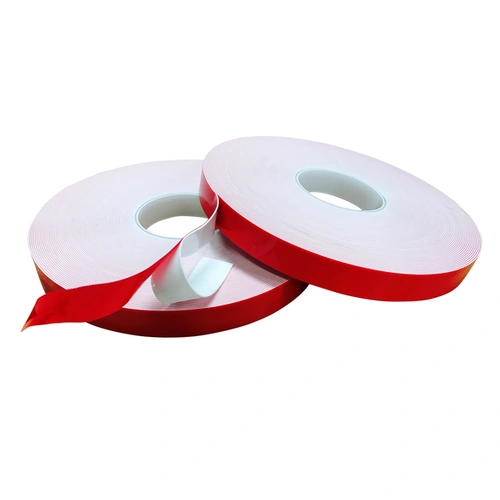

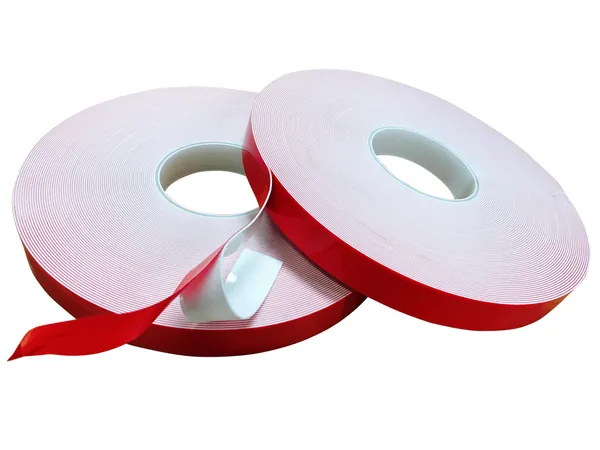

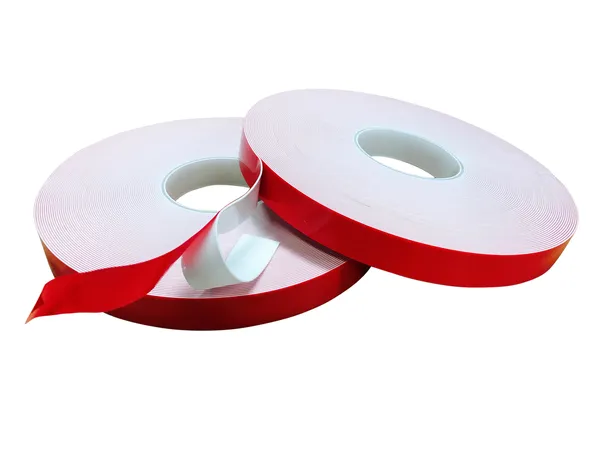

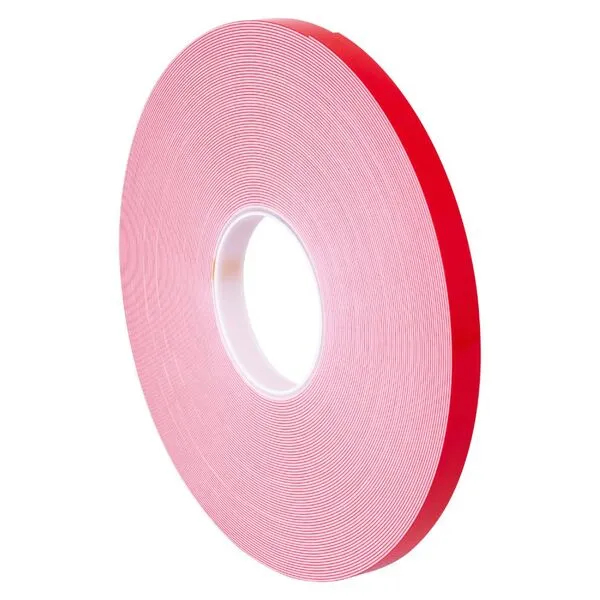

5700 Series Very High Bond Mounting Double Sided White Foam Tape

Acrylic Adhesive Foam Cored White Double Sided Tape


5700 Series Very High Bond Mounting Double-Sided Tape

The 5700 Series presents a reliable and long-lasting adhesive solution for a multitude of surfaces, boasting exceptional weather resistance and the ability to perform in cold environments as low as 0ºC. This series features the 5700, a premium white acrylic foam tape with a high-performance acrylic adhesive, specifically designed for securely bonding composite panels in both internal and external facades. Notably, this double-sided 5700 tape demonstrates a remarkable trait of being impervious to moisture absorption and the capacity to endure thermal movements. Furthermore, it excels in sound dampening while also offering anti-vibration properties.

A standout within this series is the 5711 model, a double-sided white hi-bond foam tape renowned for its high performance in bonding an extensive range of indoor and outdoor substrates. Its versatility is underscored by its applicability even in cold temperatures. From galvanized top hat sections to panel-to-frame bonding in conjunction with fasteners and sealants, this tape proves its effectiveness. It adheres impeccably to diverse smooth surfaces like glass, metals, and other substrates, boasting a medium to high energy surface rating. Industries spanning automotive, construction, electronics, engineering, industrial, graphics, signage, and beyond have found utility in this remarkable tape.

5700 TECHNICAL SPECIFICATIONS:

Adhesion: 90º  - 24hr peel - 2240gm/cm
Dynamic shear  - 8.0(1.1mm) 6.8(2.0mm) Kg/cm²
Density:   - 680Kg/m³
Tensile Strength: - 7.2Kg/cm²
Elongation: - 870%
Service Temperature: -  -30
ºC to +120ºC
Recommended Application Temp: 0ºC (Higher temp is preferred)

 Data Sheet for 2-DS-VHB-5711 Oct 2022

 More information on all types of double sided tapes



 High Bond Foam Tape Application Guide - Oct 2022

 Listing and application descriptions for the High Bond Foam Tape range - Oct 2022



Be The First To Review This Product!

Help other Get Packed Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review


Code Product Price Qty.
2-DS-VHB-5711-12

Code: 2-DS-VHB-5711-12

Very High Bond Tape Stylus 5711 - 12mm x 33m x 1.00mm (1 roll)
$69.70
2-DS-VHB-5711-18

Code: 2-DS-VHB-5711-18

Very High Bond Tape Stylus 5711 - 18mm x 33m x 1.00mm (1 roll)
$104.55
2-DS-VHB-5711-24

Code: 2-DS-VHB-5711-24

Very High Bond Tape Stylus 5711 - 24mm x 33m x 1.00mm (1 roll)
$139.40
