Automatic Strapping Machine with Arch for Cartons and Bundles

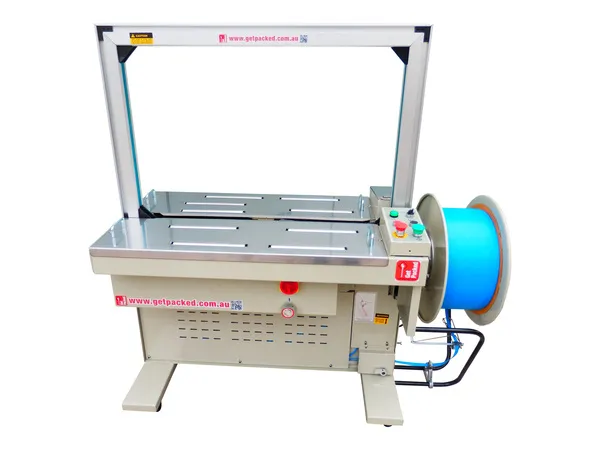

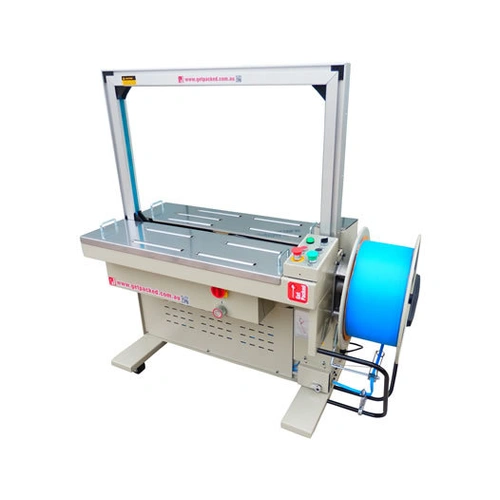

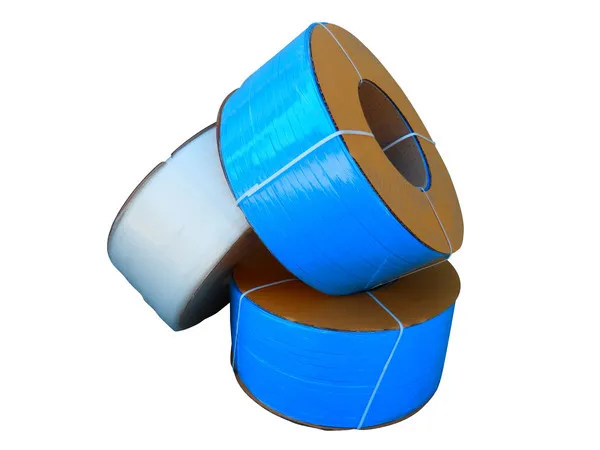

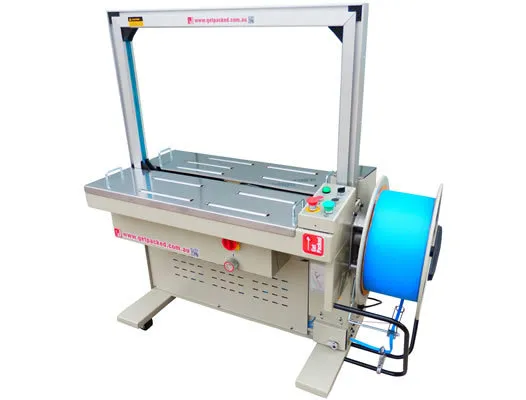

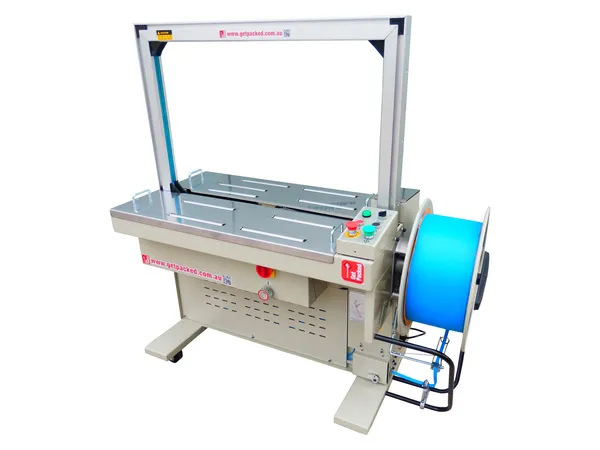

The 3-GPA101 Automatic Strapping Machine is an arch-style carton strapping machine designed for fast, consistent and secure strapping of cartons, boxes and bundled goods. Using 12mm polypropylene machine strap, the GPA101 automatically feeds the strap through the arch, tensions the strap around the product, heat seals it and cuts it ready for the next cycle.

The machine features a sensor roller on the table, allowing the strapping cycle to activate automatically when a carton is placed in position. It can also be operated manually using a table-mounted button or floor foot pedal, giving operators flexibility across different packing and warehouse applications.

With a strapping speed of up to 25 straps per minute, maximum tension of 70kg and a standard arch size of800mm x 600mm, this automatic strapping machine is ideal for large cartons, bundled products and combining smaller cartons for transport. Different arch sizes can be ordered in both width and height to suit your packaging requirements.

The 3-GPA101 is best suited for:

Carton strapping, box strapping, warehouse dispatch, production lines, print and paper bundling, distribution centres, e-commerce fulfilment and general packaging areas. It is ideal for businesses that need a faster alternative to semi automatic strapping machines but do not require a fully conveyor-integrated strapping line.

NEW ALUMINUM CHUTE (Patented)
Easy to install and maintain. Gives quiet running performance.

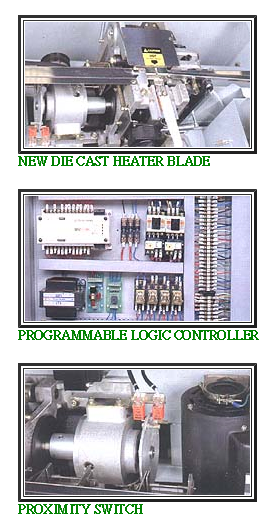

PROGRAMMABLE LOGIC CONTROLLER
Controls correct voltage and operation, no matter what the condition of the power supply. Maintenance and repair frequency has been drastically reduced, making it easier for operation.

PROXIMITY SWITCH (Patented)
Offers flawless switching without contact problems, ensuring accurate switching and a long service life.

SENSOR EQUIPPED ROLLER
Allows perfect switching, no matter where the package position is during feed.

NEW DIE CAST HEATER BLADE
This new design lasts longer and eliminates the blade distortion and short circuit problems of a conventional heater blade.

60 SEC AUTO MOTOR POWER OFF
The motor shuts off automatically after 60 seconds idle running. Cycle restart is conveniently made by pressing any switch.

TWO MOTORS SEPARATE START-UP
Can use normal electric sources due to low electric current. (Max. start-up current less than 15 amps).

Be The First To Review This Product!

Help other Get Packed Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Code	Product
3-GPA101	Code: 3-GPA101 Automatic Strapping Machine \| 3-GPA101 Strapping Machine	Price on Application

This Automatic strapping machine features a sensor roller which will activate the strapping cycle as soon as you place the carton on the table., but can also be switched to enable a button activated strap cycle.
