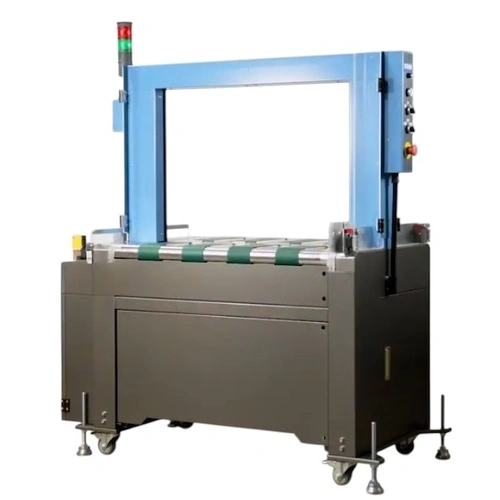

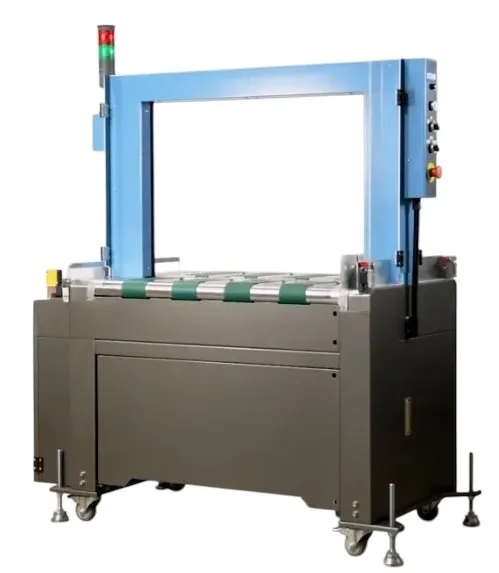

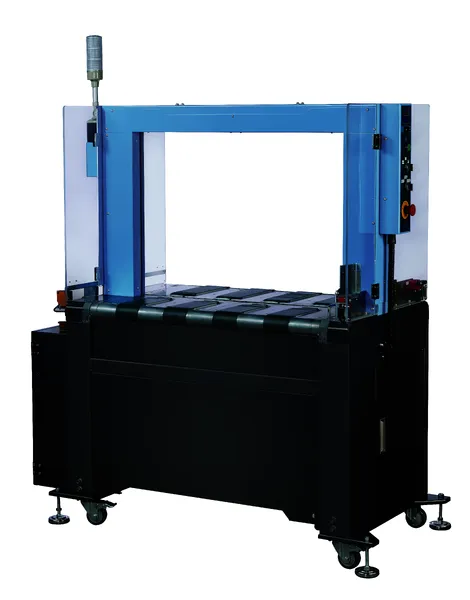

Automatic Strapping Machine 3-GPEXS-137B
Powered Conveyor Belt Fully Automatic Strapping Machine
Automatic Strapping Machine EXS-137B for Cartons, Bundles and Production Lines

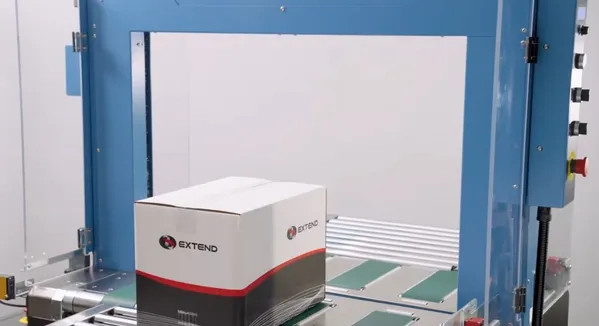

The EXS-137B Automatic Strapping Machine is a high-speed carton strapping machine designed for fast, consistent and reliable strapping of light to medium-weight goods. Ideal for warehouses, dispatch areas, printing, distribution and production lines - anywhere where packaged goods need to be strapped quickly and consistently. This automatic strapper tensions, seals and cuts polypropylene PP strapping around box, cartons, bundles and packaged products with minimal operator effort and is particularly useful where products need one strap, two straps or continuous strapping as part of a conveyor based packing process.

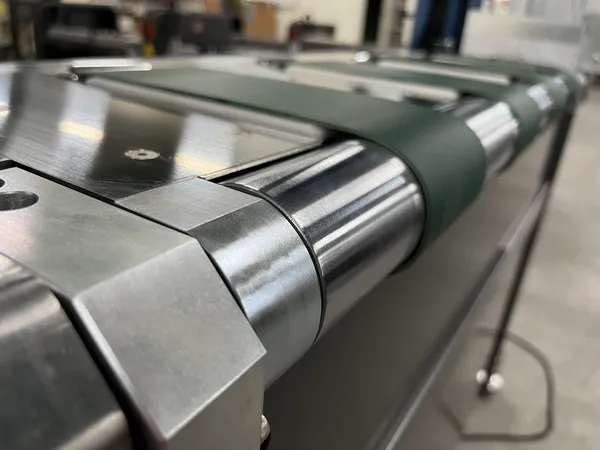

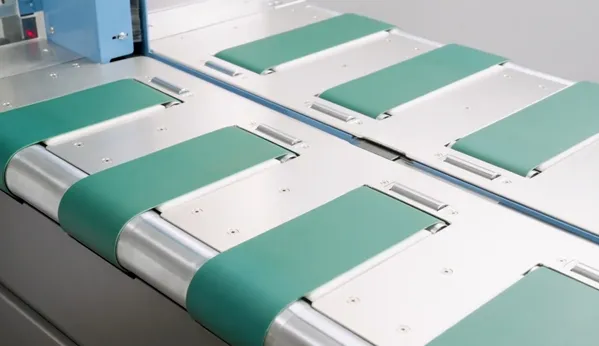

With powered infeed and outfeed conveyor belts, the EXS-137B can be integrated into automated packaging lines to improve speed, consistency and packing efficiency.
Features Include:
- delivers up to 58 straps per minute
- adjustable table height from 830-930mm
- conveyor speeds from 18-42m/min
- Electronic tension control from 1-58 kg
- auto strap threading
- loop ejection
- no package / no tension safety
- 2nd strap refeed
- last strap ejection (patent pending)
- sensor-controlled heater plate
- jog mode
- suitable for strap widths of 9, 12, and 15mm
Key Features
- Dispenser Inside Cabinet – Compact and protected design
- Easy Control Panel – Rotatable for convenient operation
- High-Speed Performance – Up to 58 straps per minute
- Electronic Tension Control – Adjustable from 1 to 58 kg
- No Package, No Tension Function – Enhances safety
- Auto Strap Threading – Simplifies setup
- Loop Ejection – Prevents jams and misfeeds
- 2nd Strap Refeed (Patent Pending) – Increases reliability
- Auto Last Strap Ejection (Patent Pending) – Reduces downtime
- Free Access to Strap Guide – Easy maintenance access
- Sensor-Controlled Heater Plate – Ensures consistent sealing
- Front Foot Bar Switch – Hands-free operation
- Adjustable Table Height – 832 mm to 962 mm for flexible installation
- Jog Mode – For service and diagnostics
- Auto Arch Service Point – Simplifies internal access
- Quick-Release Table Cover – Speeds up maintenance
Specifications
- Model: EXS-137B
- Speed: Up to 58 straps/min
- Tension Range: 1 – 58 kg
- Strap Widths: 9 mm, 12 mm, 15 mm
- Strap Type: Polypropylene (PP)
