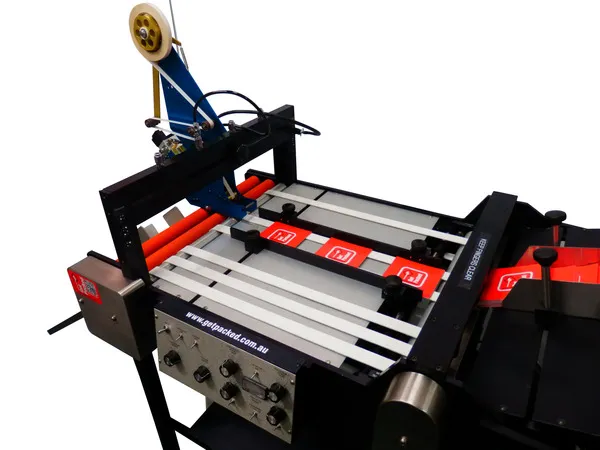

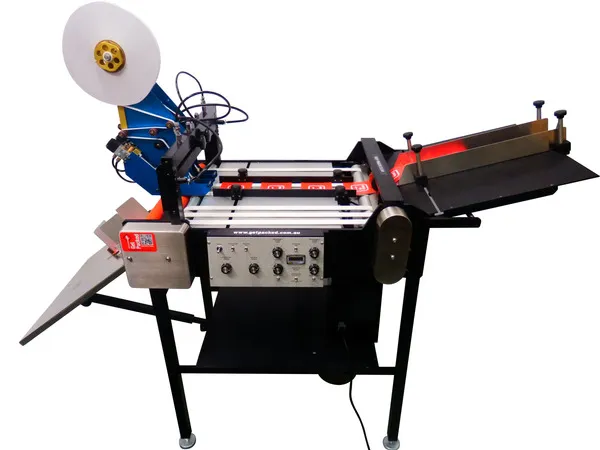

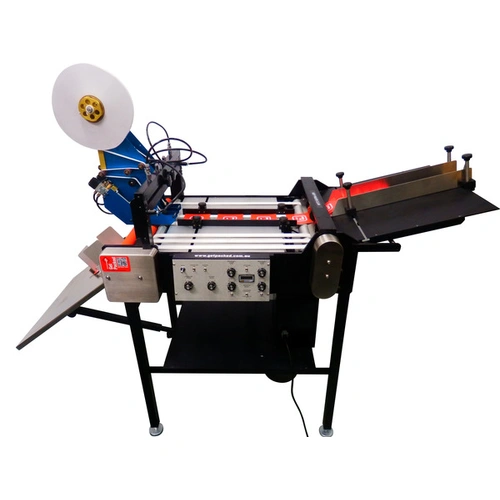

Automatic Taping Machine - ATM-460

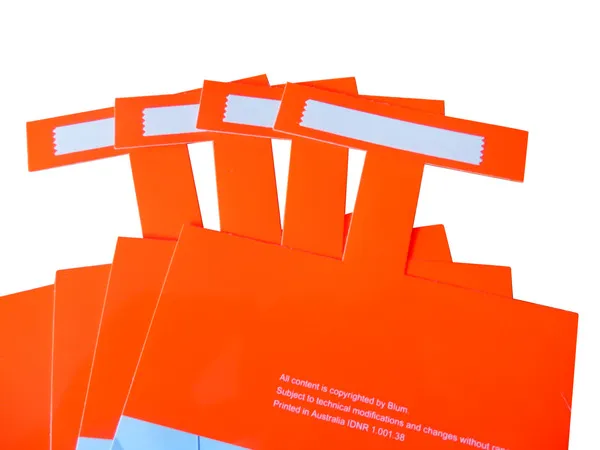

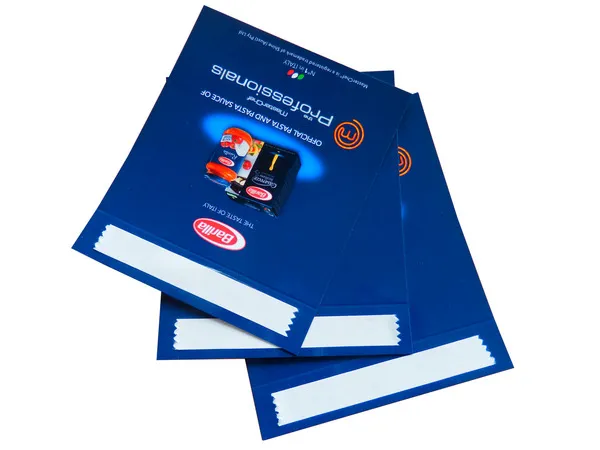

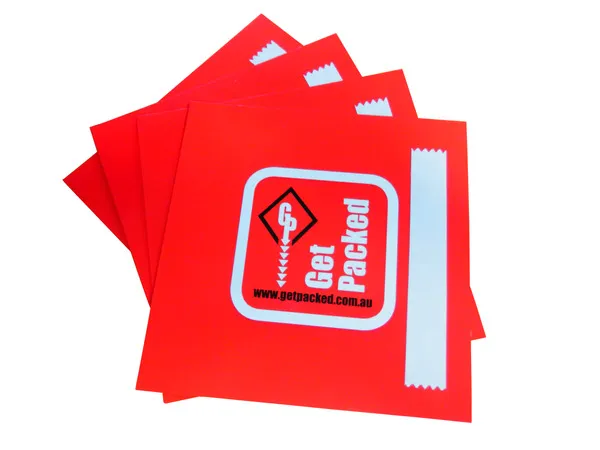

The Automatic Taping Machine 2-ATM460 is used to automatically apply double sided tape to point of sale products such as ‘Wobblers’ or “Shelf Talkers” and presentation products at very high speeds. It will save in both time and labour costs by automatically feeding a stack of products into the application system and applying the double sided tape. It is highly accurate and durable. The Automatic taping machine uses double sided tape, Hi Tack tape as well as removable tape. It can be adjusted to take tape widths 12mm up to 75mm, with 3 different sized heads available - up to 24mm, up to 50mm and up to 75mm. Markets served by this machine include any Printer who does any large volume of Wobblers or Shelf Talkers , Envelope Printers, Point of Sale Produces, Presentation products, sign printers and other unique products that require double side tape to be applied to their items at high speed and are interested in reducing labour costs.
Comes standard with 2 tape heads, but can fit 4.
Go to the More Information Tab to view the brochure.
- Product Name: 2-ATM-460
- Weight: 115kg
- Overall Size: 63.5cm W x 182.8cm L x 121cm H
- Working table elevation: 86.3cm – 91.4cm
- Power Requirements: 10 Amps
- Air Requirements: 60 psi min.

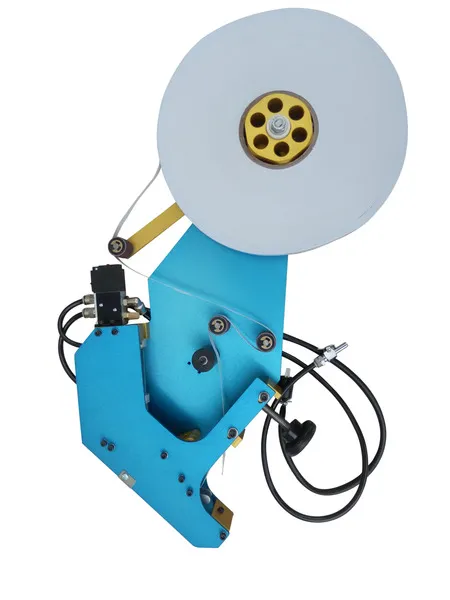

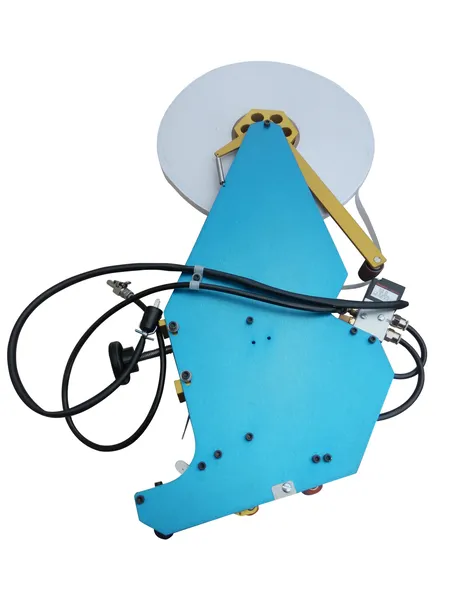

- Number of Tape Heads: two (2) metering units come standard

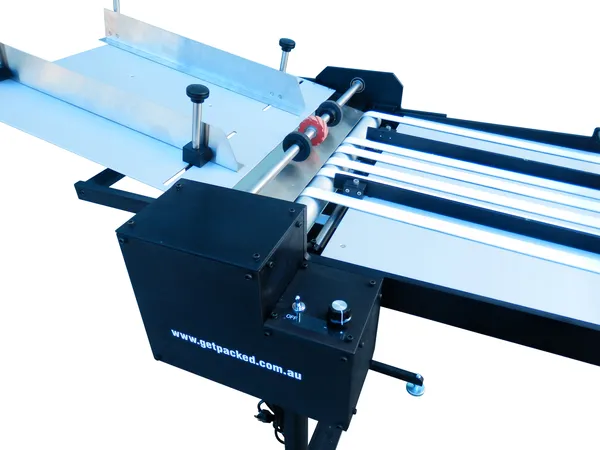

- Product Handling: Magazine feeder feeds up to 457mm x 457mm
- Product Thickness: 0.1mm
- Tape Types: Many types of single sided and double sided tapes
- Tape Roll Size: 300mm O.D. on 75mm I.D. roll standard (larger roll support is special order)
- Tape Widths: Adjustable up to 24mm - wider heads optional
- Tape Thickness: up to1.52mm thick
