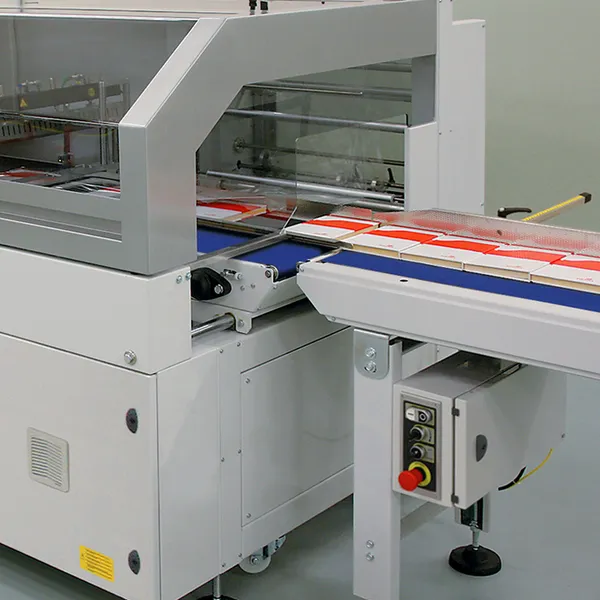

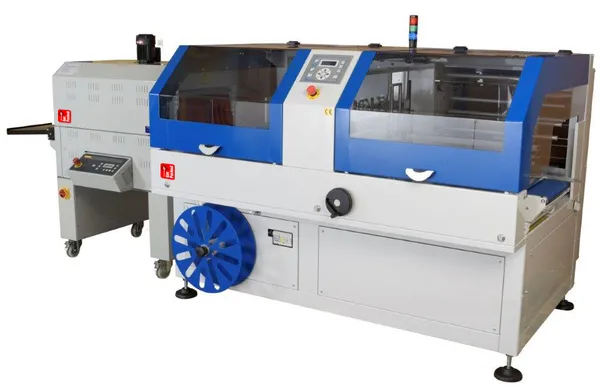

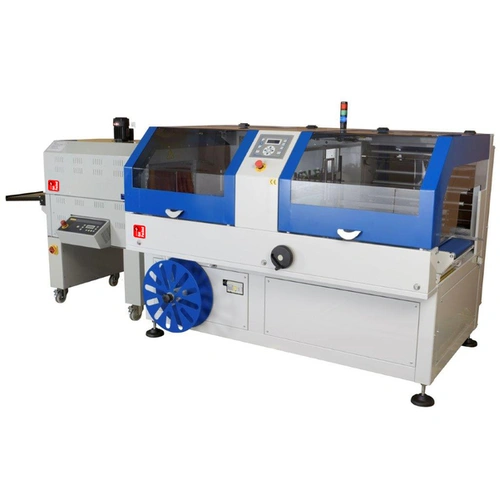

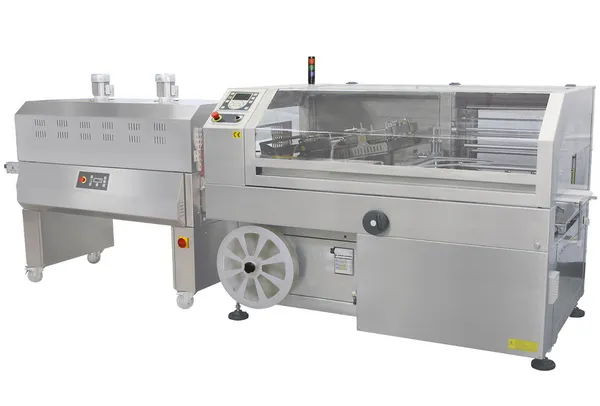

Automatic Side Seal Shrink Wrapping Machine 4-GP500CS

Automatic Continuous Side Seal Shrink Wrapping Machine 4-GP500CS

High Speed Continuous Side Seal Shrink Wrapping Machine

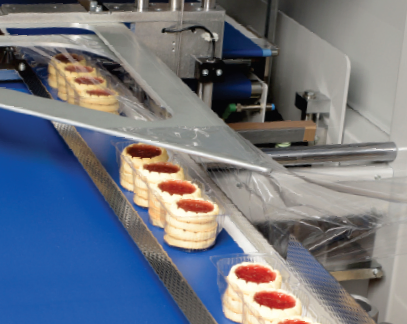

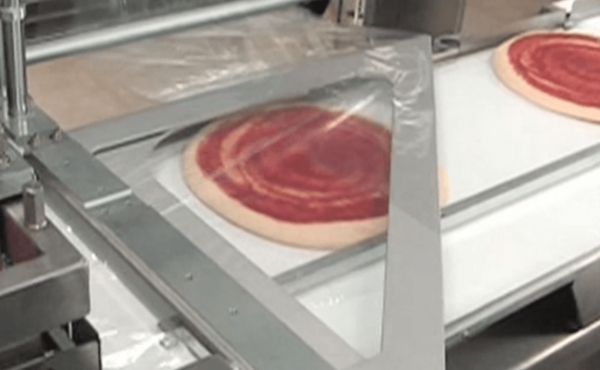

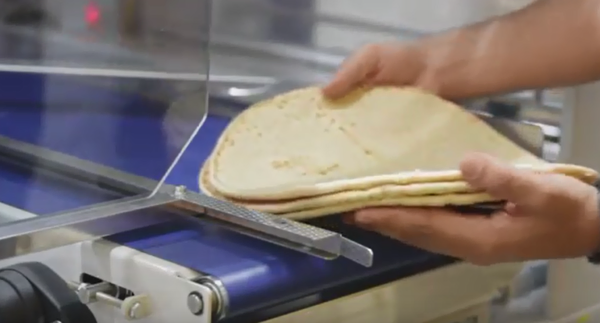

This Italian-made continuous side seal shrink wrapping machine offers high-speed production and exceptional performance that you would expect from a European packaging machine. The 4-GP500CS uses a continuous side sealing system that cuts and seals the film more than 3600 packs per hour, depending on the item's size and shape. The GP500CS high-speed shrink wrapping machine continuously seals along the open side of the film with no limit to the pack length. A photo sensor detects the package length and activates a lateral sealing bar to form the bag around the item. This machine is ideal for cosmetic or pharmaceutical products, pizzas, fresh food and produce wrapping due to its speed and high volume output. The GP500CS works perfectly with the Cryovac range polyolefin presentation films, including the CT or Impact Films. The VT450 or VT650 shrink tunnel is sold separately.

Pack Size 500mm x Unlimited
Pack Height 200mm
Pack Weight 30kg Max

Continuous Side Sealer with Longitudinal Intermittent Sealing System

The system is designed for the future, delivering precision, efficiency, and user-friendly operation.

Key Features:

Automatic adjustments
- Centre seal positioning
- Sealing bar height control
Smart control interface
- 7” full-colour LCD touch screen
- Storage and readout of process statistics (counter, pack length measurement, real-time output, machine performance, detection of irregular packs)
Flexible operation
- Single-pack and multi-pack modes
- Electronically adjustable conveyor speed
- Continuous, fully electric packer with dual belts
Sealing performance

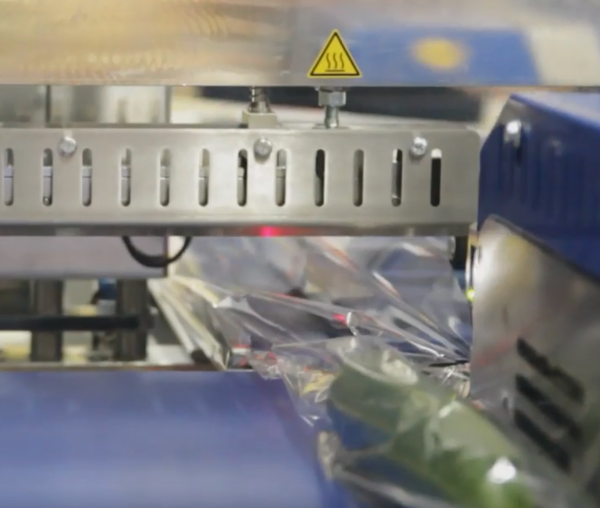

- Cross-sealing bar with PTFE-coated blade
- Inverter and encoder-controlled sealing precision
Reliability and efficiency
- Faulty pack detection
- Power and control section with optimised energy management
- Reduced power consumption
