Carton Label Print & Apply Applicator
Apply labels on Front, Rear, Side and Two-Side of Carton

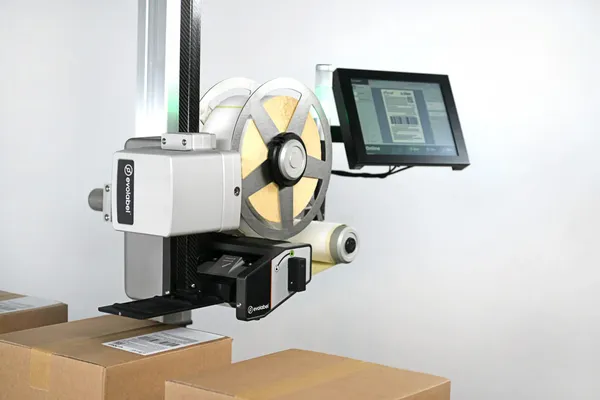

Carton Label Print & Apply Applicator

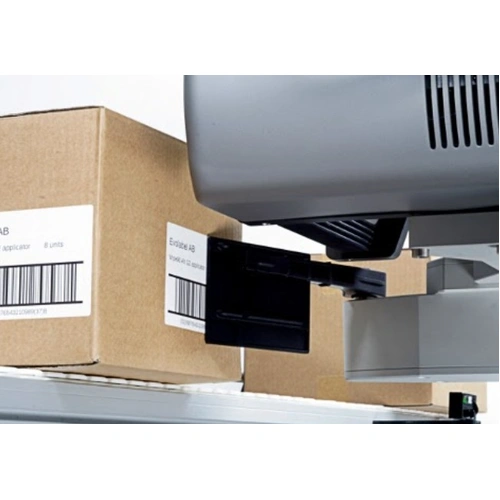

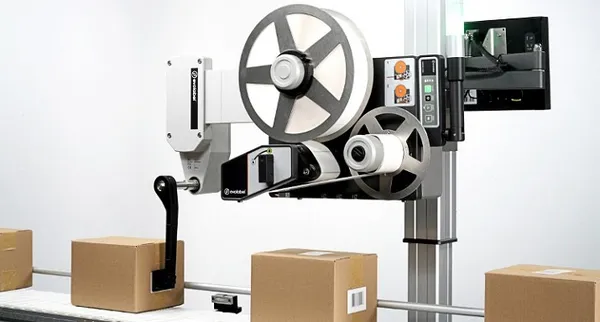

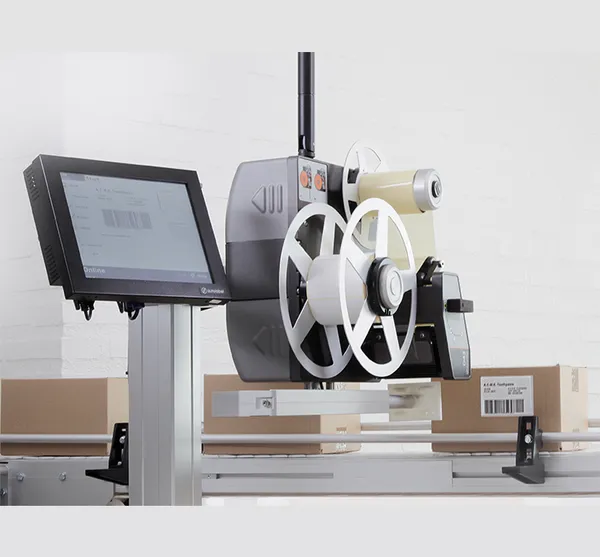

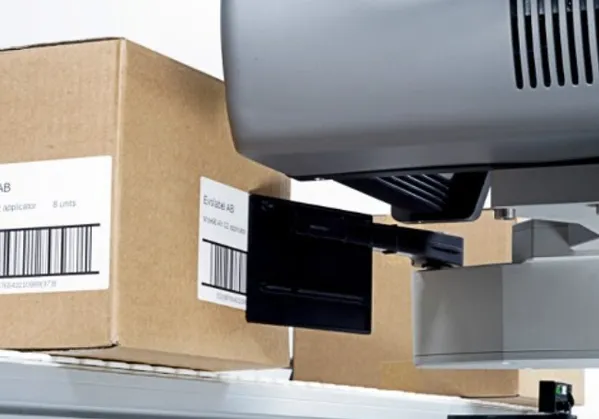

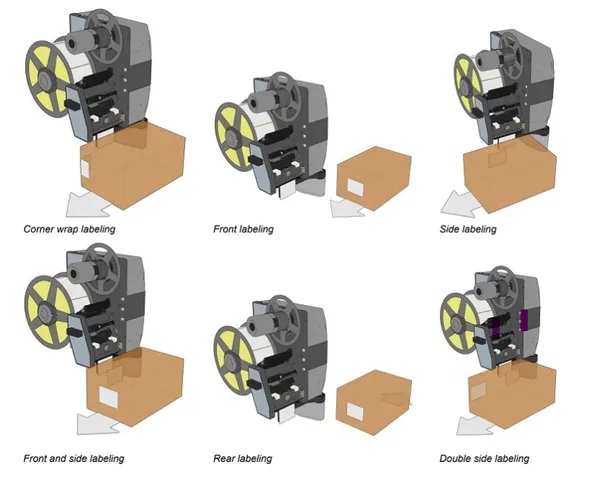

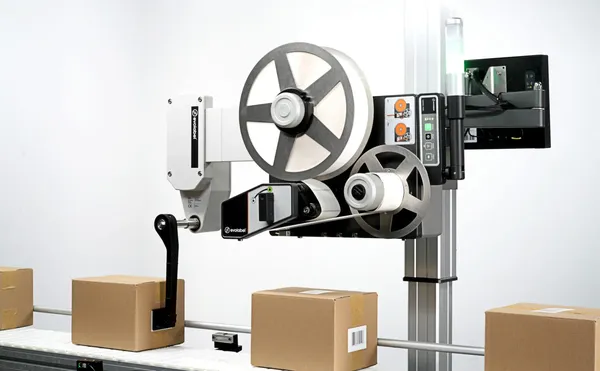

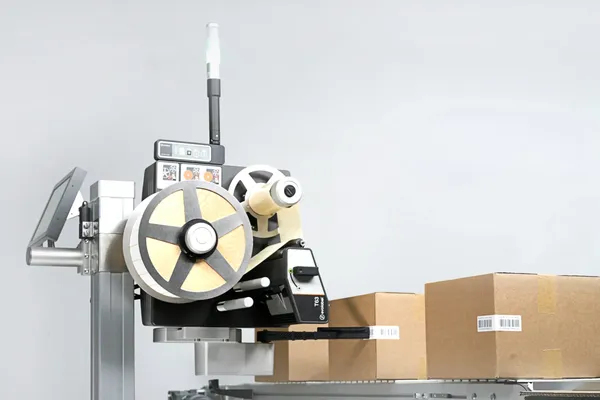

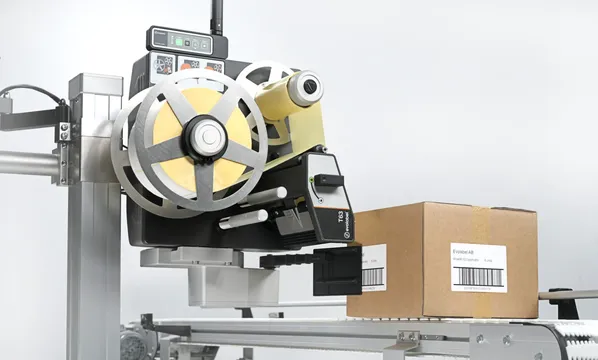

This Label Applicator is available in several variations to suit the printing and application of labels to cartons. It is designed to print and apply labels to the desired position, that being the front, back, side or adjacent sides of cartons at high line speeds. It is ideal for box labelling, dual-side labelling and corner-wrap applications, where one label is applied across the carton edge for clear scanning and reliable product identification. The Carton Label Printer Applicator can be used on a conveyor line or fitted to a carton sealer.
Featuring modern European design, the system is fast, accurate and easy to operate, with quick label roll and printhead changes to minimise downtime. With print speeds up to 160mm per second, this carton labeller helps maintain production efficiency while reducing the need for pre-printed labels. It allows businesses to print carton labels on demand, supporting generic packaging and reducing label stock requirements.
- Minimum label size: D43/T43: 30x20 mm, T63: 115x20 mm
- Maximum label size (WxL): D43/T43: 118x150 mm, T63: 178x150 mm
- Label apply technology: Stepper motor driven arm with encoder
- Max apply angle: 192°
- Apply speed: Dependent on arm length and pad size
- Air supply: 6 bar, clean and dry
- Communication: EXT 1 (RS-232)
- Power supply: DC input: 24 VDC / 3.0 A
- Capacity (depends on label size, stroke length, arm length, apply speed): Up to 80 labels per minute
