Automatic Pallet Stretch Wrapping Machine - 1-GPEXP-501

In Line Pallet Wrapper - Automatic Style Wrapping


Automatic Pallet Stretch Wrapping Machine - 1-GPEXP-501

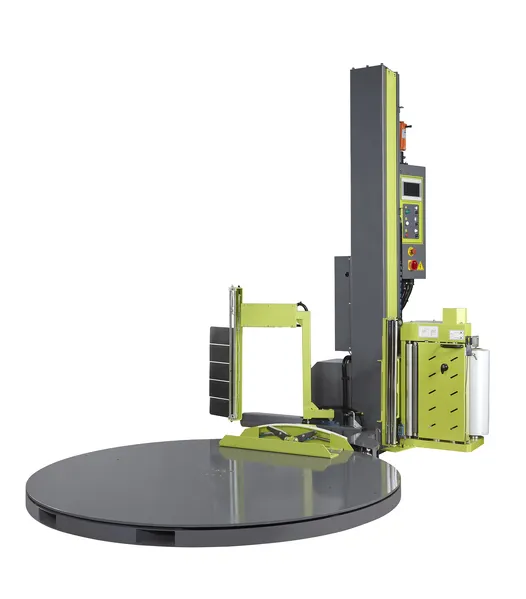

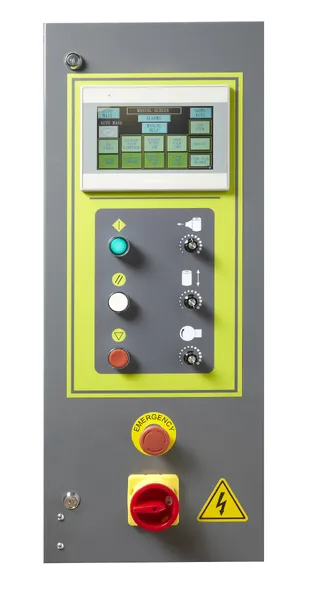

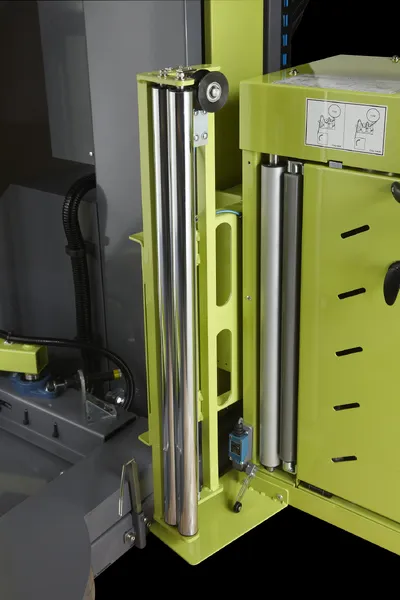

If you have perfectly straight edge squared consistent pallets every time with high volumes, consider an Automatic 1-GPEXP-501 Stretch Wrapper. These machines have an automatic film cut-off and wipe function to speed up the wrapping process; the operator can start the machine cycle using an optional remote control from the forklift. These machines are fully programmable, using a touch screen panel to control wrap cycles, including the power pre-stretch film tension up to 300%, turntable speeds and film carriage speed. The machine can take a maximum load of 2000kg using its powered chain drive and turntable motor. This Automatic Pallet Wrapper series can be integrated into a conveyor line with infeed and outfeed production roller conveyors to maximise production capacity.

SPECIFICATION

MAX. WRAPPING HEIGHT 2M
MAX. TURNTABLE SPEED 12RPM
MAX. LOADING WEIGHT 2000KG
TURNTABLE DIAMETER 1800MM
POWER SUPPLY 100V/110V/220V/230V/240V., 50/60HZ., 1-PHASE
POWER CONSUMPTION 1.2KW
AIR CONSUMPTION 19L/MIN. 6KG



Be The First To Review This Product!

Help other Get Packed Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review


Code Product
1-GPEXP-501

Code: 1-GPEXP-501

Automatic Pallet Stretch Wrapping Machine - 1-GPEXP-501
Price on Application

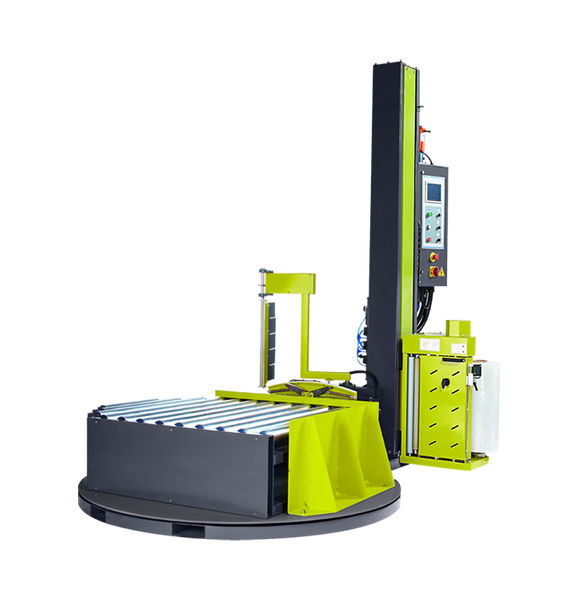

Interfaces to infeed and outfeed production conveyors with fully programmable wrapping cycles and up to 300% power pre-stretch ratio on the easy threading film carriage.

.
.
.
