Horizontal Mail Bagging Machine

High Speed Plastic Wrapping of Mail and Magazines

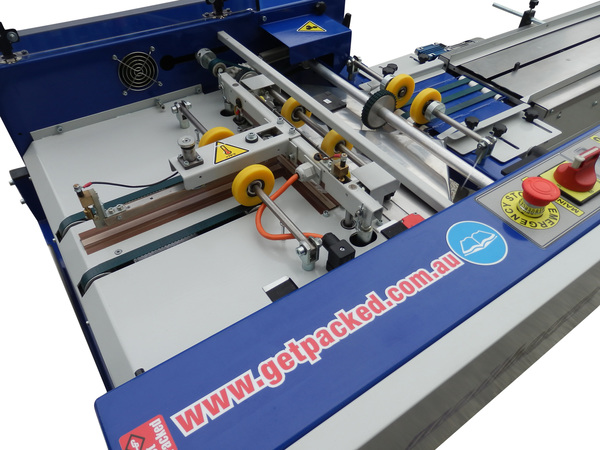

Horizontal Mail Bagging Machine

The high-speed horizontal mail bagging machine can efficiently package over 2,000 items per hour using plastic mailing film. This user-friendly mailing machine is particularly well-suited for wrapping magazines, catalogues, and other printed materials up to the size of A4.

Operated easily, the Horizontal Mail Bagger features a convenient infeed conveyor belt for loading magazines. This belt transports the magazines to the sealing machine, where the film is skillfully wrapped around the product and firmly sealed along the back centre of the item. Subsequently, it is precision-cut to the desired size, making it ready for mailing.

Notably, the machine employs an internal silent air compressor to power the sealing bars, ensuring a smooth and quiet operation.

To view the mailing film to suit, please follow the link.

Go to the More Information Tab to view the brochure.



  Brochure

A bag is formed around the product by the adjustable width folding plates. The bag is then sealed and cut according to the product length.

  • Horizontal feeding
  • single phase 10amp power
  • Machine Dimensions 2700mm x 900mm x 350mm
  • Machine Weight 150kg
  • Automatic cycle controlled by PCB
  • Display with touch sensitive controls
  • Independent sealing-bars; sealing-time and temperature controlled by PCB
  • Pneumatic movement, air-compressor inside
  • Motorized film-unwinding
  • Pneumatic sealing-bar movement driven by internal silent air compressor
  • Automatic product ejection
  • Synchronous lugged motorized infeed conveyor belt on request
  • The machine works with transparent or printed LLDPE (thickness 15 ÷ 40)

Machine made according to CE rules.

Be The First To Review This Product!

Help other Get Packed Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review


Code Product
5-GPMAIL-HORIZ

Code: 5-GPMAIL-HORIZ

Horizontal Mail Bagging Machine
Price on Application
.
