Reka TR 50.5 Pneumatic Hot Melt Glue Gun applies hot-melt granules, pillows, and 43 mm glue slugs

Hot Melt Applicator TR 50.5 | Pneumatic Glue Gun

Hot Melt Applicator Reka TR 50.5 | Pneumatic Glue Gun

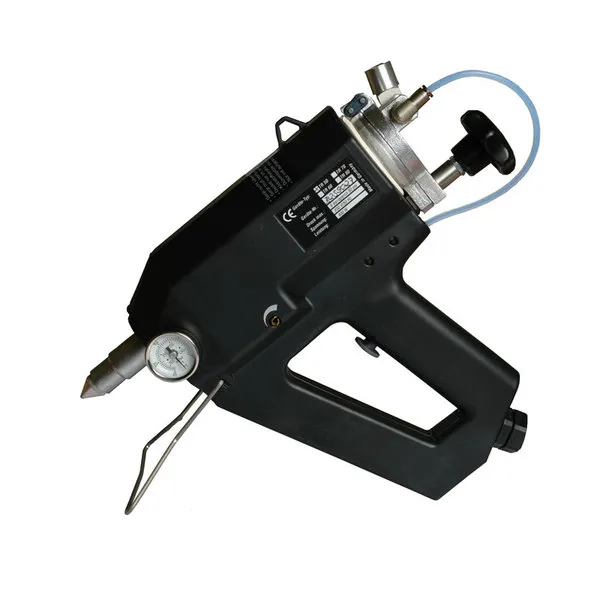

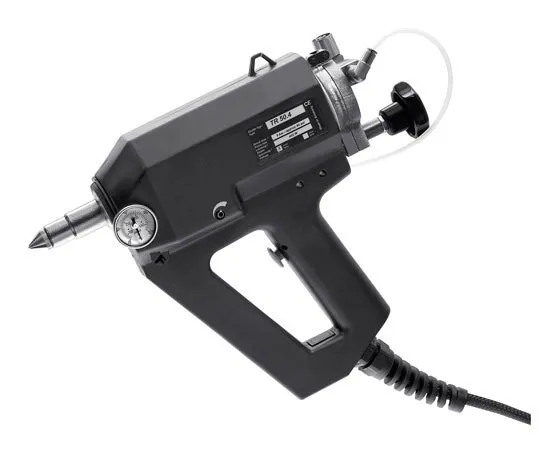

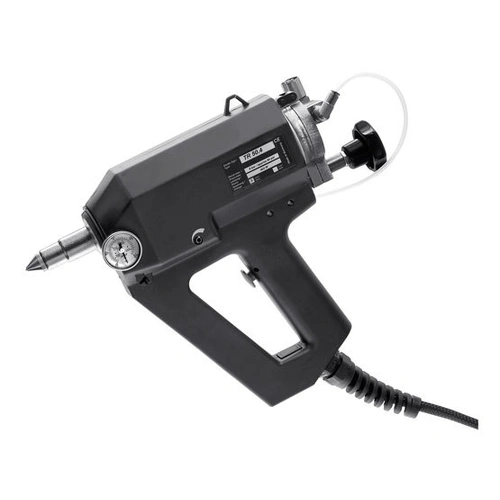

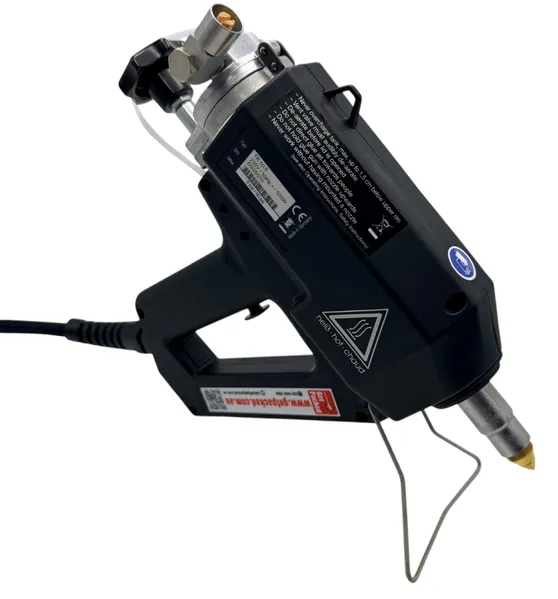

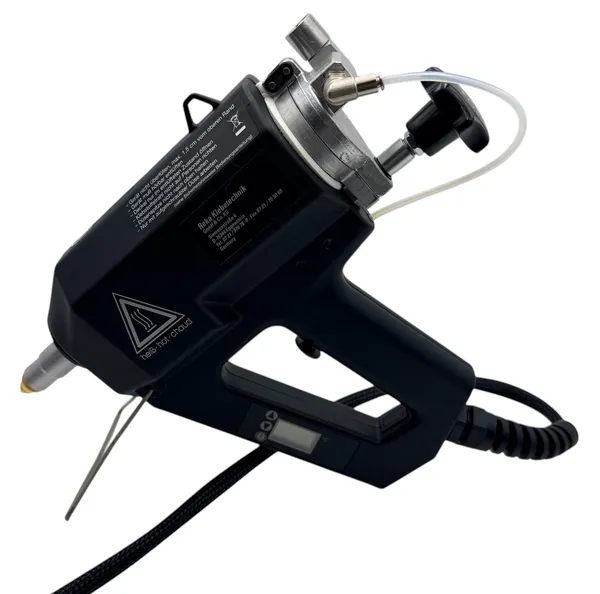

The Reka TR 50.5 applies hot-melt adhesives in the form of granules, pillows, and 43 mm sticks with ease and precision. Its innovative comfort-locking system ensures quick and convenient refilling.

Powered by compressed air, the TR 50.5 delivers smooth operation, precise glue dosing, and a continuous workflow. The electronically controlled digital thermostat heats the glue within minutes and maintains a stable temperature between 170°C and 190°C, preventing degradation and ensuring optimal bonding quality.

With a 250 ml tank capacity, it supports extended use and minimises downtime. Weighing just 1.2 kg, the TR 50.5 is ideal for industrial applications, even in dusty and demanding environments.

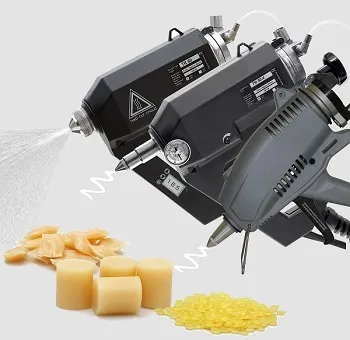

This versatile Reka pneumatic glue gun enables dot, bead, or line application, with optional nozzles available for various application patterns. Its compatibility with multiple adhesive formats offers flexibility and cost-efficiency.

Click "More Information" to view the brochure.

Manual

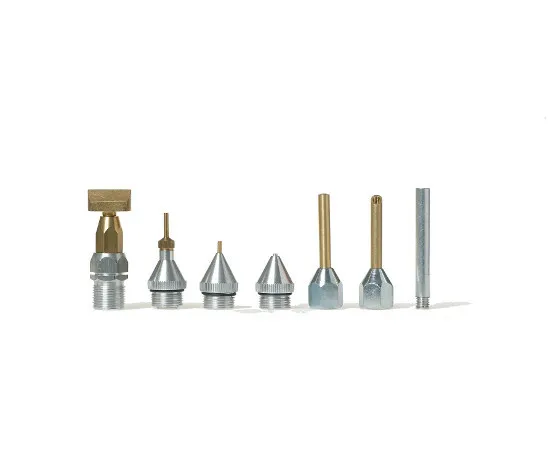

Nozzle list

Weight applicator	1200 g
Power connection	230 V (50 Hz), 2,2 A / 120 V (60 Hz), 3,3 A
Power consumption	230 V: 500 Watt / 120 V: 400 Watt
Protection class	I, IP 30
Temperature control, display	Electronic, LCD
Temperature limitation	Temperature monitor
Operating temperature	ca. 170 – 190 °C
Temperature constancy	± 2 °C
Heat-up time	ca. 3 – 10 min.
Gross capacity	250 ml
Conveyor system	Air pressure
Operating pressure	0,5 – 6 bar
Length of electrical connection	8,5 m
Air hose length	5 m
Length connection set	3 m

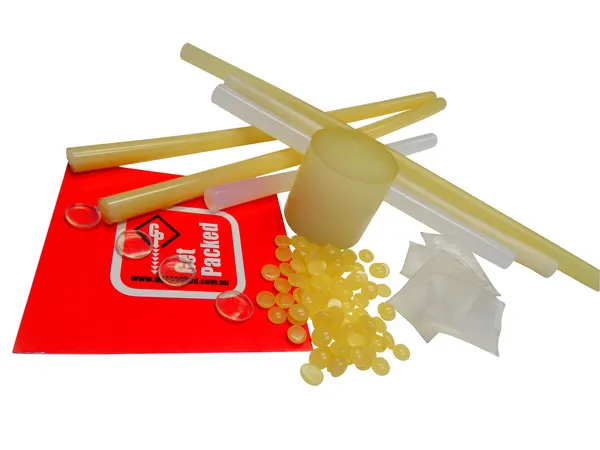

Recommended melting goods	Hot-melt granules, pillows, 43mm sticks
